Firefly's Credit Card sized PC with Six-Core

Overview:

ROCKCHIP RK3399 had multiple power supply ports:

1. DC12V Power Supply,

2. PoE (Power Over Ethernet),

Network Capability:

1. Gigabit Ethernet

2. 2.4 GHz Wifi

3. Bluetooth 4.2

Expansion Board Combination:

Expansion Boards can be used to improve the performance greatly.

Camera:

Has 2xMIPI-CSI. RK3399 can support dual-8MegaPixel or Single-13MegaPixel Camera.

fireFly2

IR:

RK3399 supports IR, thus making it easy to control via Remote.

OS:

Support Android, Ubuntu, PhoenixOS, Firefly Geek Entertainment System–Station OS, Desktop and Media mode, seamless switching between study, entertainment, and work

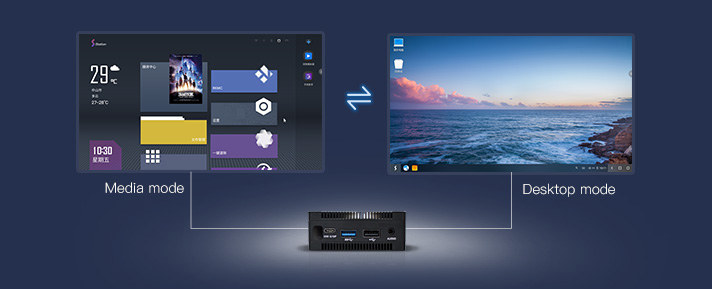

Firefly-Station

Specification:

SoC:

ROCKCHIP RK3399, Six-core 64-bit ( dual-core A72+ quad-core A53)processor, frequency up to 1.8GHz

CPU:

Six-core ARM® 64-bit processor, frequency up to 1.8GHz. Based on big. LITTLE core architecture, dual-core Cortex-A72(big core)+ quad-core Cortex-A53(little core)

RAM:

4GB LPDDR4 dual-channel 64-bit RAM

GPU:

Mali-T860 MP4 quad-core GPU, support OpenGL ES1.1/2.0/3.0/3.1, OpenVG1.1, OpenCL, DX11

VPU:

1. Support 4K VP9 and 4K 10bits H265/H264 video decoding, up to 60fps
2. 1080P multi-format video decoding (WMV, MPEG-1/2/4, VP8)
3. 1080P video coding, support H.264,VP8 format

Video post processor:

De-interlacing, de-noising, edge/detail/color optimization

Storage:

1. Onboard SPI Flash(16MB)
2. Optional high-speed eMMC(16GB/32GB/128G B)
3. Support MicroSD(TF card), USB flash disk expansion
4. Support expansion board M.2 M-Key to expand SSD

Ethernet:

10/100/1000Mbps Gigabit Ethernet (RJ45 interface)）

WiFi:

WiFi 2.4GHz 802.11b/g/n, Bluetooth 4.2(support BLE)

Display:

1. HDMI2.0 support 4K 60Hz display, support HDCP 1.4/2.2
2. DP1.2 (DisplayPort 1.2 support up to 4K 60Hz)/p>
3. Support eDP 1.3
4. Support MIPI-DSI(dual-channel)
5. Support Type-C + HDMI dual display, support 4K + 2K output

Audio:

1. 1 x Phone( 3.5mm), 1 x HDMI, 1 x DP
2. Support LINE_IN and LINE_OUT

Camera:

2x MIPI-CSI (Built-in dual ISP, Maximum support single 13Mpixel or dual 8Mpixel)

USB:

1 x USB 2.0, 1 x USB3.0, 1 x Type-C (USB3.0 / DP1.2 / OTG)

Key:

1 x Recover(Located at the end of the 3.5mm audio port)

IR:

Support infrared remote control

Power:

1. DC12V-2A(5.5*2.1mm)
2. Support POE+ (802.3 AT, output power 30W)

OS:

1. Support Android, Ubuntu, PhoenixOS
2. Support Firefly Geek Entertainment System–Station OS, Desktop and Media mode, seamless switching between study, entertainment, and work

Size:

120 mm × 72 mm × 11.2 mm

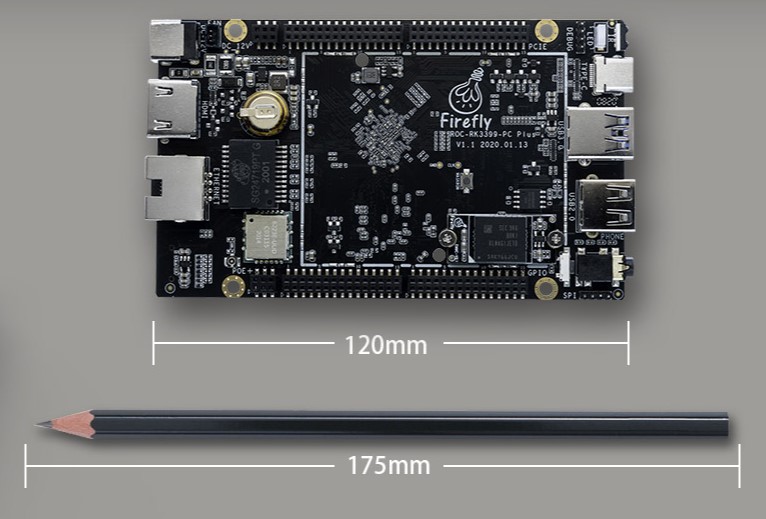

FireFly vs Pencil
