RISCV + BeagleBoard = BeagleV

Here In this post, we will look into the specification of BeagleV.

Posted
Preview Image
By Balaji Velayutham
views 1 min read
RISCV + BeagleBoard = BeagleV

OPEN is now with

Open-Source Hardware

Open-Source Software

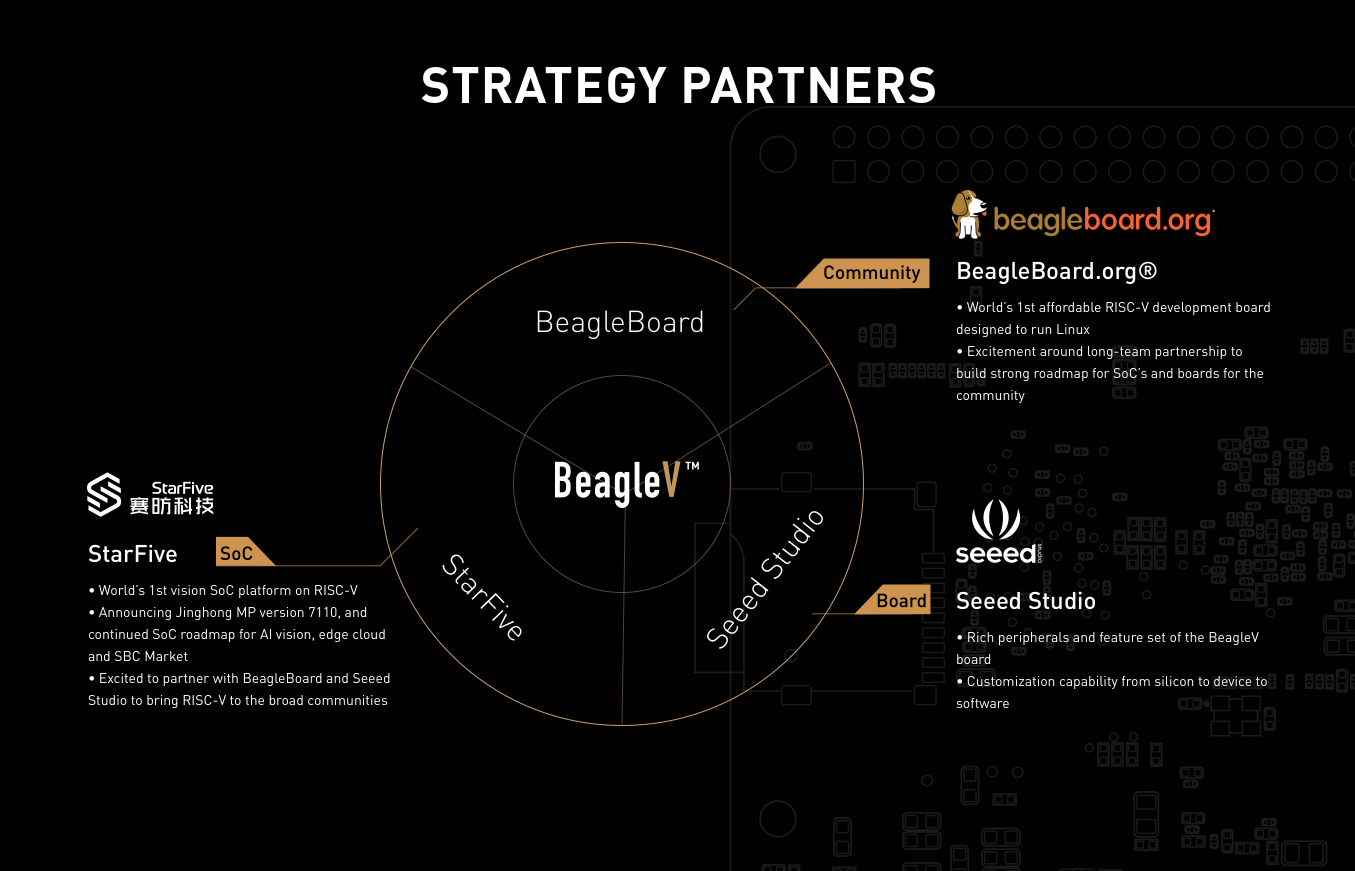

star strategy

CPU

  • BeagleV is powered by SiFive U74 RISC-V Dual-core processor
  • 2MB L2 cache
  • 2x 4GB LPDDR4 SDRAM (Total: 8GB RAM)
  • Can configure up to 128 global interrupts per core
  • NVDLA Engine for Deep Learning Acceleration

Computing Vision

  • Vision DSP Tensilica-VP6 for computing vision
  • Built-in AI for real-time vision and AI at the edge
  • Note: VP6 is an older generation (introduced in 2016)
  • The newer Vision Q7 DSP offers more advanced features

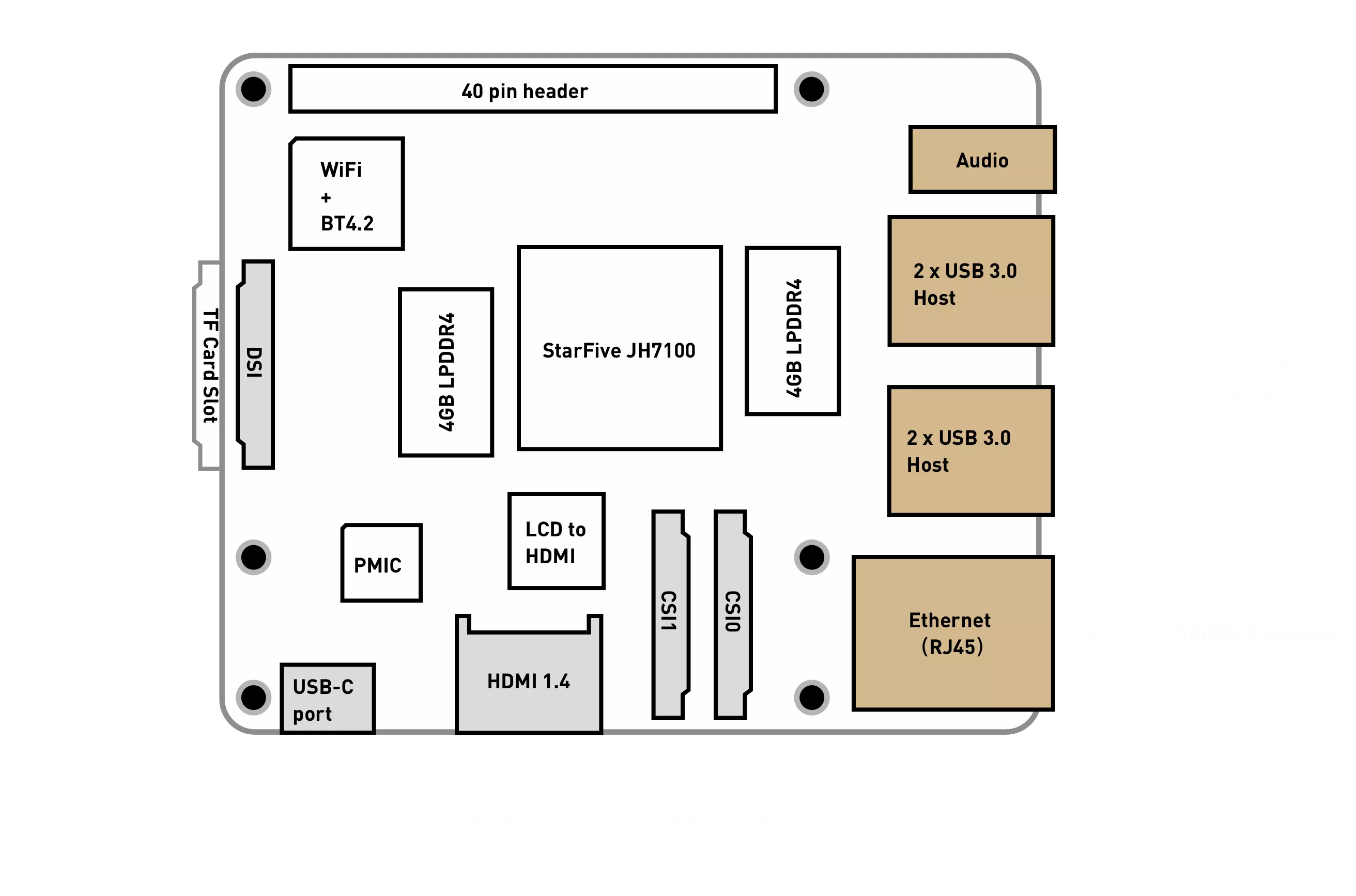

board board

Video

  • Video decoder: up to 4K @ 60FPS
  • Supports Dual 2K recording @ 30FPS
  • 1x HDMI port supporting 1080P @ 60FPS

Peripherals

  • USB Type-C port for power input (5V @ 3A)
  • 2.4 GHz Wi-Fi and Bluetooth 4.2 connectivity
  • 4 x USB 3.0 ports – for mouse, keyboard, pen drives, etc.
  • 1 x Gigabit Ethernet port – high-speed wired connectivity
  • 1 x 3.5 mm audio jack – for audio peripherals
  • microSD card slot – for OS and storage
  • 40-Pin GPIO Header – to connect sensors, displays, and other external hardware
Chip Chat
news beagle riscv
